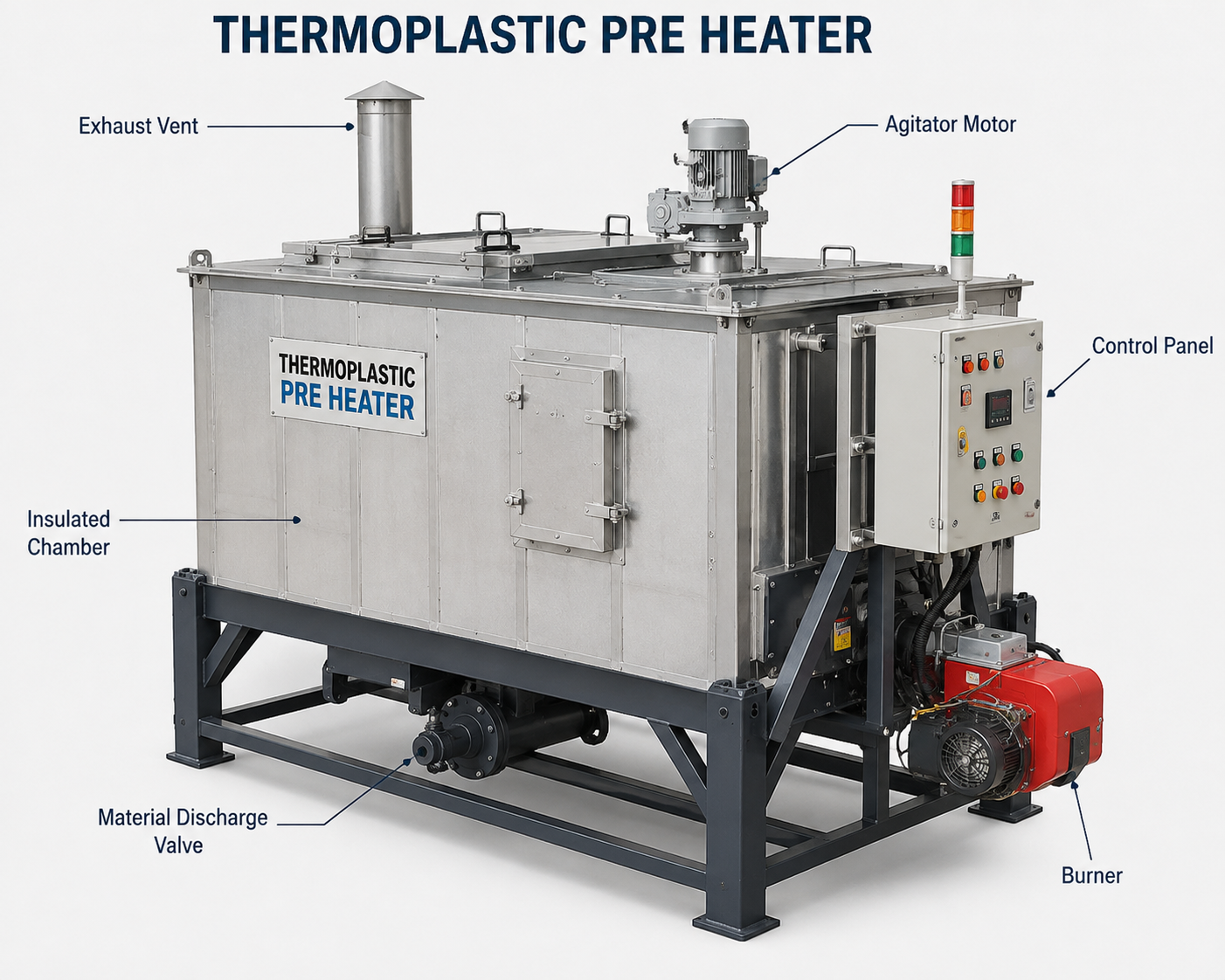

Thermoplastic pre heaters melts, heats and mixes the thermoplastic material making it ready for application via the road marking
machine. To ensure a continuously road marking process it is important to choose the proper size of the pre heater.

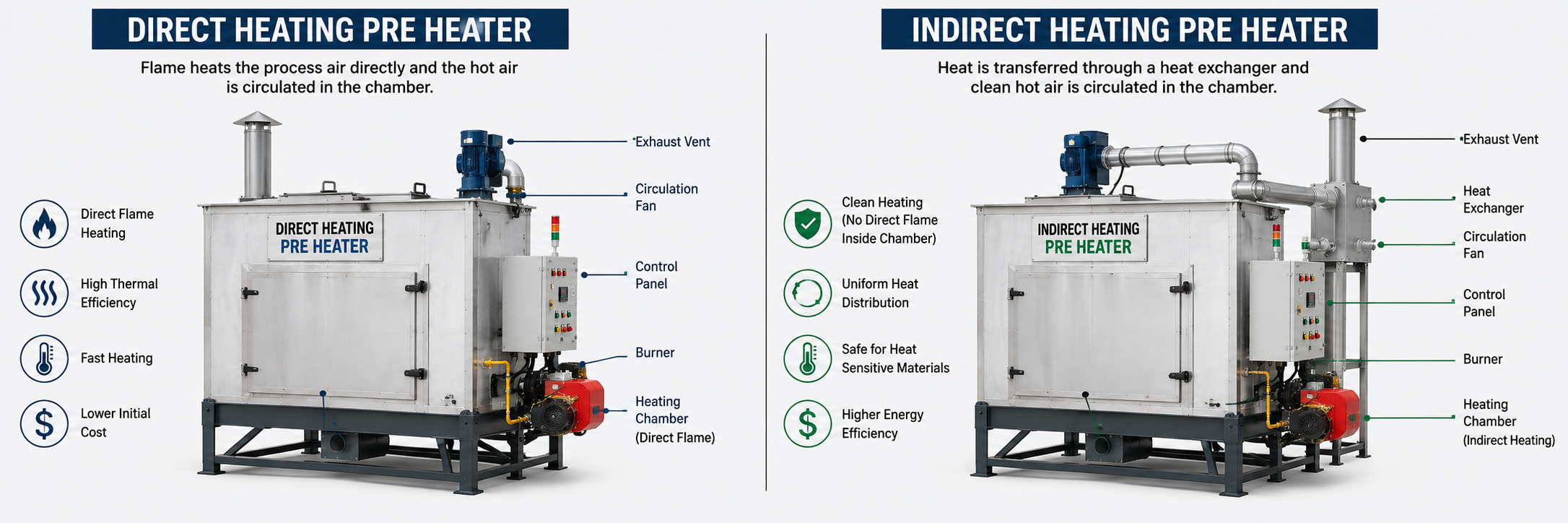

Pre heaters are designed in two different systems
- Direct Heating
- Indirect Heating
In both the systems the heat flows through a chamber and heats the thermoplastic material. In Direct heating the flame or flue gas heats the inner shell, which heats the material & in indirect the flame or flue gas heats an oil which heats the material.
Direct heating pre heaters – The thermoplastic material is directly heated from the burner, the flame or flue gas travels and heats the inner chamber.
ADVANTAGES
- Fast heating and better efficiency, hence more
melting capacity - More Affordable as there is no outer oil chamber.
- Simple construction, no intermediate oil section as
in indirect heating
Capacity, size and quote | ||
|---|---|---|
| Sr No | Material weight (KG) | Dimensions (LXWXH) |
| 1 | 250 | 1000X1000X1200 |
| 2 | 400 | 1250X1250X1250 |
| 3 | 600 | 1250X1250X1500 |
| 4 | 800 | 1500X1500X1500 |
Indirect Heating Pre heaters – The thermoplastic material is heated by an oil. There is an oil chamber in contact with the thermoplastic material which heats it. The oil chamber gets heated by the burner.
ADVANTAGES
- Longer lifetime of the pre heater due to the more gentle heat supply from the burner no overheating of the steel parts.
- Evenly distributed heat, safe heating conditions, Uniform storage temperature.
- Better material quality and no hot spots in the material as there is evenly distributed heat.
Capacity, size and quote | ||
|---|---|---|
| Sr No | Material weight (KG) | Dimensions (LXWXH) |
| 1 | 300 | 1000X1000X1200 |
| 2 | 500 | 1250X1250X1250 |
| 3 | 750 | 1250X1250X1500 |
| 4 | 1000 | 1500X1500X1500 |
Frequently Asked Questions
Thermoplastic Pre Heater
What is the purpose of a Thermoplastic Pre Heater?
What fuel can be used in a Thermoplastic Pre Heater?
What is the difference between direct and indirect heating?
Can the machine be customized?
Do you provide AutoCAD design services?
Get a Custom Thermoplastic Pre Heater
Looking for a Thermoplastic Pre Heater Manufacturer or a custom-designed road marking heating system?
Our engineering team can design and manufacture a solution tailored to your project requirements, production capacity, and operational needs.
